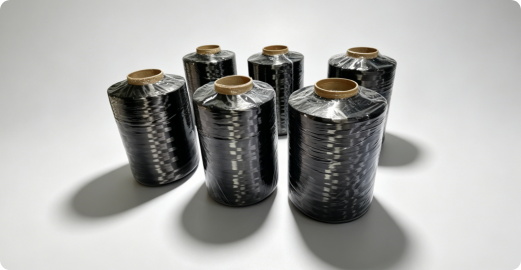

Carbon Fiber

Key Features & Advantages

High Strength-to-Weight Ratio

High Stiffness

Corrosion & Fatigue Resistant

Low Thermal Expansion

Vibration Damping

Availability for Epoxy resin and Vinyl Ester resin system

Std. Mod / High Tenacity


Code
Filament
Count
Tensile Strength
(Mpa)

Elastic Modulus

(Gpa)

Elongation at

Break(%)

Density

(g/cm³)

Diameter

(μm)

FY 300 1/3/6/12K 3530 230 1.5 1.76 7
FY 300J 3/6/12K 4210 230 1.8 1.78 7
FY 400H 3/6K 4410 250 1.8 1.8 7
FY 700S 6/12/24K 4900 230 2.1 1.8 7
FY 700G 12/24K 4900 240 2 1.8 7
FY 1000G 12K 6370 294 2.2 1.8 5~6



Intermediate Modulal


Code
Filament
Count
Tensile Strength
(Mpa)

Elastic Modulus

(Gpa)

Elongation at

Break(%)

Density

(g/cm³)

Diameter

(μm)

FY 800H 6/12K 5490 294 1.9 1.81 5
FY 800S 12/24K 5880 294 2 1.8 5
FY 1100G/S 12/24K 7000 324 2.2 1.81 5



High Modulal


Code
Filament
Count
Tensile Strength
(Mpa)

Elastic Modulus

(Gpa)

Elongation at

Break(%)

Density

(g/cm³)

FY 35J 6/12K 4510~4700 343 1.3 1.81
FY 40J 6/12K 4400 377 1.2 1.81
FY 46J 6/12K 4200 436 0.9 1.82
FY 50J 6K 4120 475 0.8 1.83
FY 55J 6K 4020 540 0.8 1.84
FY 60J 3/6K 3820 588 0.7 1.85
