Process Horizontal Tank Winding Process

Tank-HORIZONTAL TYPE WINDING



Machinery

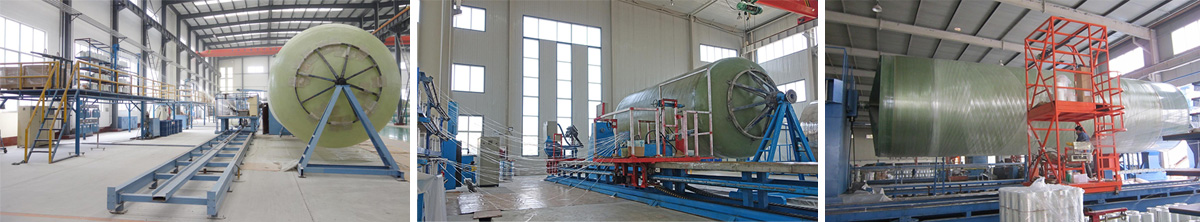

COMPLETE THE GRP TANK WINDING PRODUCTION LINE (HORIZONTAL TYPE)

 Effective height or length

 1m to 12m (discretionary)

 Diameter

 1m to 4m

 Operating pressure

 Atmospheric to 6bar

Steel Moulds for liner

DN1000-DN4000 (customized size as per customer requirement)

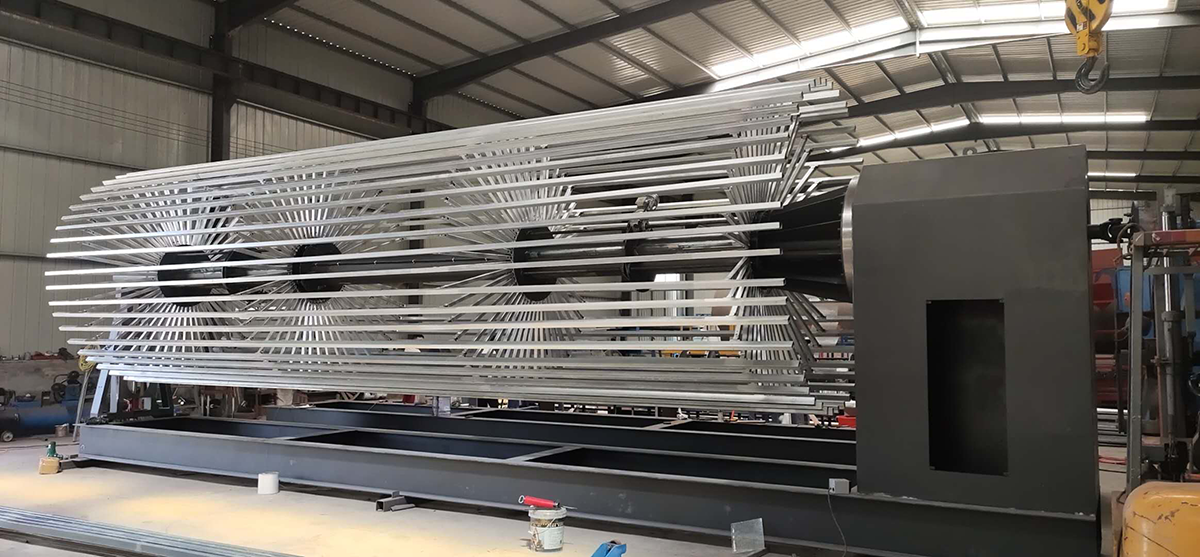

Collapsible Moulds


DN 2500-DN3700

Length: 8 meter

ONE MOULD CAN MAKE MANY DIFFERENT SIZE LINER, CAN SAVE THE INVESTMENT FOR LINER MOULDS.

Materials

 Base Materials (Resin)

 Reinforcing Materials (Fiber Glass)

 Accessory materials

 Accessory tools

 Liner Resin: ISO resin/ Vinlyester Resin

 Direct Roving: 2400 tex, 4800 tex, 9600tex

 Polyester Film: 36um-200mm

 Pressing Roller

 Structure Resin: Ort-resin

 Assembled Roving: 2400 tex Spray up roving

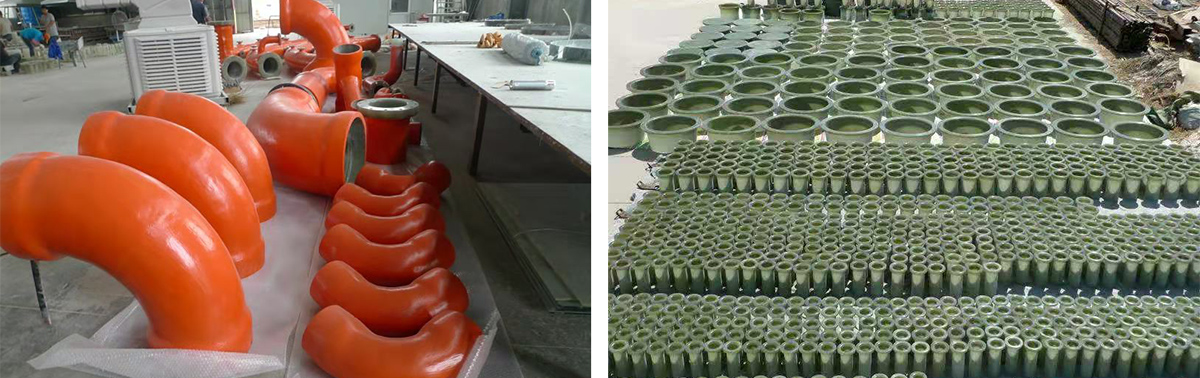

 GRP Flange, Elbow, Manhole Cover etc.

 Hardener




 Accelerant
