Process Non-Continuous Filament Winding Process

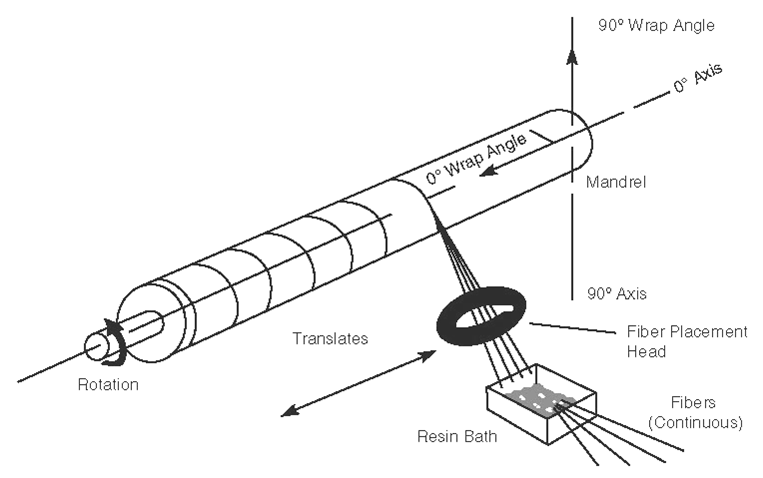

NON-CONTINUOUS FILAMENT WINDING


Machinery

COMPLETE GRP PIPE NON CONTINUOUS FILAMENT WINDING PRODUCTION  LINE

 Effective Length

 2-12 meters

 Diameter

 50~4600mm (or as per customer requirement)

 Output

 84 km /year of Dia.600mm pipe (6 bar and SN=5000)



FRP/STEEL MANDRELS

DN 50-DN4600 (or customized size as per customer requirement)

Materials

 Base Materials (Resin)

 Reinforcing Materials (Fiber Glass)

  Accessory materials

 Accessory tools

 Liner Resin: ISO resin/ Vinlyester Resin

 Chopped Strand Mat: 300gsm-200mm/450gsm-200mm

 Polyester film: 23um-50mm

 Diamond saw blade

 Structure Resin: Ort-resin

 Direct roving: 1200 tex, 2400 tex, 4800 tex

 Sand Adding Cloth: 70gsm-300mm

 Pressing Roller

 Hardener

 Surface tissue/veil: 27gsm-45mm

 Inner Lining Cloth: 50gsm-230mm

 Rubber Seal Ring

  Accelerant
