MODEL

 SMC 1200C

 DESCRIPTION

 SIZE

 MAX. WIDTH OF SMC SHEET

 1220MM

 DENSITY OF SMC SHEET

 2-6KGS/M2

 RESIN PASTE VISCOSITY

 10000-40000MPA.S

 FIBER CONTENT

 12%-50%

 FILAMENT SIZE

 2400-4800TEX

 FIBER  FEEDING

 48ENDS *2SETS

 CARRIER FILM DIAMETER MAX

 500MM

 CARRIER FILM  SUPPORT  LOCATION

 TWO UPPER CARRIER FILM ROLLER

 TWO BELOW CARRIER FILM ROLLER

 DOCTOR BLADE LIFTING

 PNEUMATIC

 DOCTOR BLADE FAST LIFTING

 PNEUMATIC

 BLADE DRIVING MOTER

 380V/50HZ, 3KW*2

 BLADE DRIVING MOTOR SPEED

 20-210R/MIN

 FIBER CUTTING LENGTH

 12.7MM, 25.4MM,38.1MM,50.8MM

 CUTTER QUANTITY

 2SETS

 FRAME FOR FIBERGLASS ROVING

 1SETS (48ENDS)

 FIBERGLASS CLOTH CARRIER

 1SETS (TWO OPERATING POSTION)

 CHOPPED STRAND DISPERSION UNIT

 2SETS (INDEPENDENT DRIVE)

 MESH BELT SPEED

 5-18M/MIN

 MESH BELT WIDTH

 1330MM

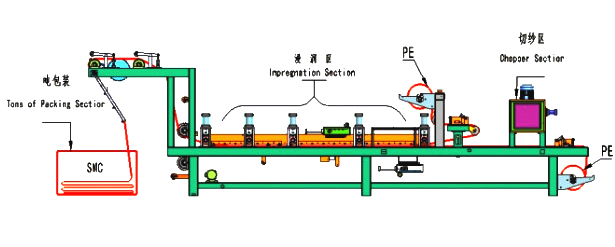

 LENGTH OF IMPREGNATION SECTION

 50000MM

 ROLLER QUANTITY

 27 PAIRS
