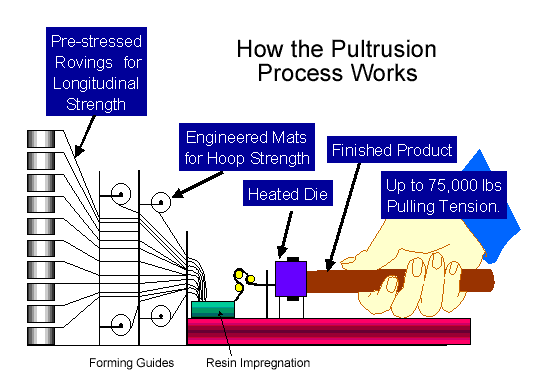

Pultrusion Process Pultrusion Process


Machinery

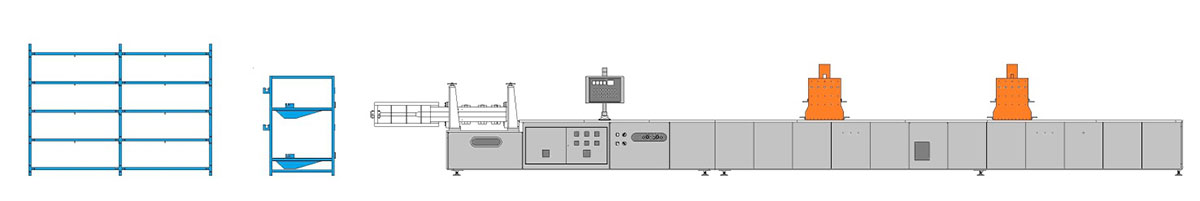

 HYDRAULIC  PULTRUSION PRODUCTION LINE

 CATERPILLAR PULTRUSION PRODUCTION LINE

 High speed resin mixing machine

 Mould(Die)


 Pultrusion Capacity: 10 tons-50ton


 Pultrusion Capacity: 3 tons-8 tons

 Mixing capactiy:50L

 Made of high-quality steel,with high hardness, polished finish



 Mixing speed: ＞1250 r/min



Materials

 Base Materials (Resin)

 Reinforcing Materials (Fiber Glass Raw Materials)

 Resin: ISO resin/ Vinlyester Resin/ Ort-resi

 Direct roving: 2400 tex, 4400tex, 4800 tex, 8800 tex, 9600 tex

 Hardener: MEKP

 Stitched mat: 300gsm

 Accelerant

 Woven Roving: 600gsm, 800 gsm

 Pigment: Yellow/Green/Gray


 Filler: ALHO3/CACO3
