FRP Sheet Process FRP Sheet Process

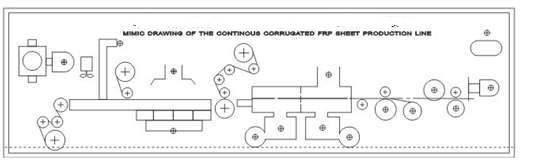

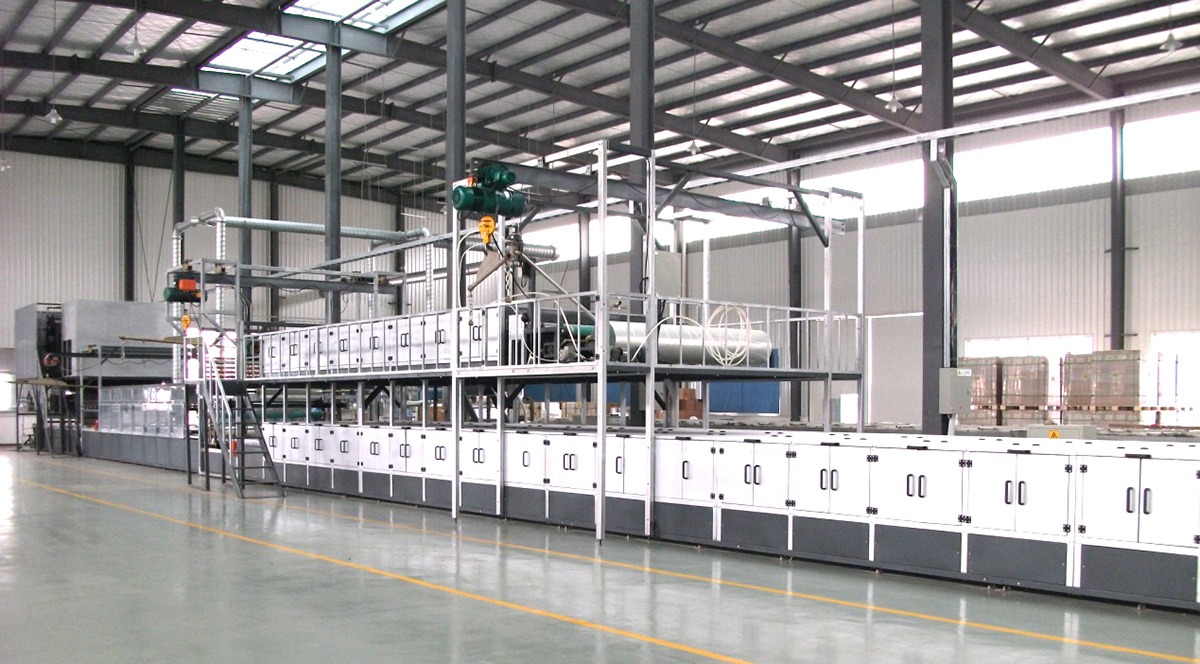

Machinery-FRP SHEET PRODUCTION LINE WITH GEL-COAT SYSTEM


Performance description of Equipment

No.

Description

 Data

 1

 Operation staff

 6--8 staff

 2

 Production speed

 3-8m/min

 3

 Maximum width of finished panel

 1500mm(Flat Sheet)

 4

 Thickness of panel

 0.4mm~4mm

 5

 Maximum wave height (optional)

130mm

 6

 The total power installed

85KW

 7

 The average power consumption

55KW-60KW

 8

 Overall dimension

65m *4m*4.5m(L*W*H)



Materials

 Base Materials (Resin)

 Reinforcing Materials (Fiber Glass Raw Materials)

 Accessory

 Resin: GP resin

 Panel roving: 2400 tex

 Cutting Knife

 Gel coat

 Chopped strand mat: 225gms/300gsm/450gsm/600gsm



 PET Film 23um, 36um, 50um
