Chopped Strand Mat(Emulsion type)

Description

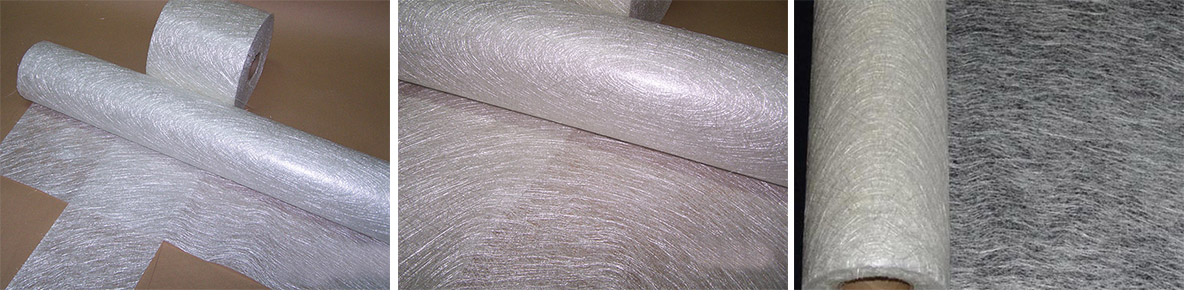

E-Glass Fiber Chopped Strand Mat(Emulsion type)

Glass Fiber Emulsion Binder Chopped Strand Mat is made of randomly distributed chopped strands held together with Emulsion binder.

Emulsion Chopped Strand Mat is compatible with unsaturated polyester, vinyl ester, phenolic and epoxy resins.

The products are widely used in hand lay-up process and can also be used in filament winding, compression molding and continuous laminating process. Its end-use applications include boats, bath equipment, automotive parts,chemical corrosion resistant pipes,tanks,building components and cooling towers.



Characteristics of Chopped strand mat

1.High mechanical strength of parts.
2.Good wet-through and fast wet-out in resins and rapid air lease.
3, No fiving objects during operation.
4, High tensile strength allowing for use in hand lay-up process to produce large-area parts.



Package:

Each Emulsion Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 90mm. The roll outside diameter is approximately 265mm. Each roll is wrapped up in plastic film and then packed in a cardboard box. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.


Storage:

Unless otherwise specified, Emulsion chopped strand mats should be stored in a cool, dry, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15℃ to 35℃ and 35% to 65% respectively.


Technical DATE SHEET

E-Glass Fiber Chopped Strand mat(Emulsion)

Serial No.

Product No.

Mass Per Unit Area(%)

Moisture Content(%)

Combustible Matter Content(%)

Breaking Force(N)





ISO3374-2000

ISO3344-1997

ISO1887-1995

ISO3342-1995

1

EMC225

 -5+10

0.20

4.5±0.9

≥80

2

EMC300

 -5+10

0.20

4.0±0.8

≥120

4

EMC450

 -5+10

0.20

3.8±0.8

≥140

5

EMC600

 -5+10

0.20

3.8±0.8

≥160
