Description

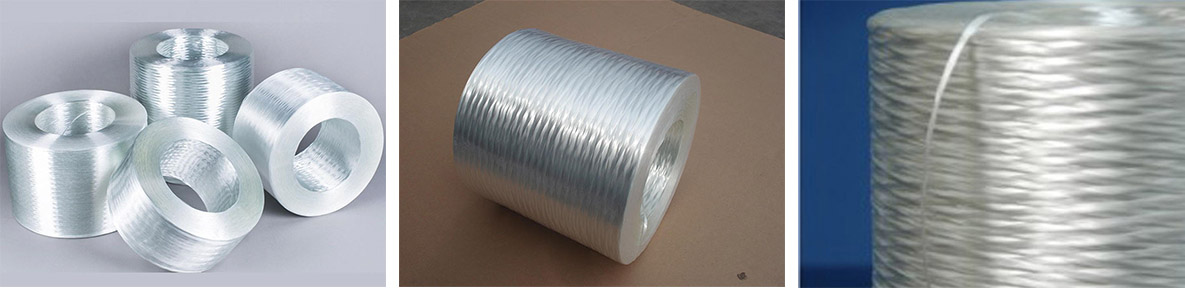

Direct Roving for Weaving is coated with a silane-based sizing compatible with unsaturated polyester, vinyl ester, and epoxy resins. It is designed for weaving process.
The roving and the fabrics woven from it are widely used in wind energy,marine,and chemical industries,and suitable to manufacture wind blades,pressure vessels,gratings, and boats.
Product Features
◎ Excellent weaving performance
◎ Low fuzz
◎ Complete and fast wet-out
◎ Smooth transfer between packages
◎ Good mechanical properties
Technical DATE SHEET
|
PRODUCT NAME
|
E-GLASS FIBER DIRECT ROVING FOR WEAVING
|
|
TEST ITEM
|
STANDARD NO.
|
STANDARD VALUE
|
|
LINEAR DENSITY(%)
|
ISO 1889-1997
|
±5
|
|
breakage strength(n/tex)
|
iso 3341-2000
|
≥0.40
|
|
COMBUSTIBLE MATTER CONTENT(%)
|
iso 1887-1995
|
0.45-0.70
|
|
moisture content(%)
|
iso 3344-1997
|
≤0.10
|
Linear Density
200tex-9600tex
Package
Each roll of roving is wrapped by shrinkage packing or tacky-pack, then put into pallet or carton box, 48 rolls or 64 rolls each pallet.
Pallets characteristics
|
Product
|
Levels per
Pallet
|
Rovings
per Pallet
|
Rovings
per Level
|
Pallet Dimensions L x W x H (mm)
|
Net Weight
approx.
(Kg)
|
|
Direct Roving
|
3
|
48
|
16
|
1140 x 1140 x 940
|
816
|
|
Direct Roving
|
4
|
64
|
16
|
1140 x 1140 x 1230
|
1088
|
Note：Please contact us if you have special requirements.
Storage
Unless otherwise specified, the fiberglass products should be stored in a dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15℃~35℃ and 35% ~ 65%.It is best if the product is used within 12 months after production date.The fiberglass products should remain in their original packaging until just prior to user .
To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.
